"Project alphas" then, is an examination of relationships existing between alpha and the ordinary CPC, Obviously, since the notation of alpha is very different from that of garden variety logics, the first thing we must do is to find a means of "translating" alpha graphs into wffs of ordinary PC's and vice-versa.

We describe a function, or set of instructions, which will enable us to translate any alpha graph into a unique formula of the PC; this function we call "f." In describing this function, we first show how to write "names" of alpha graphs, and then we designate a set of these names as "standard" names; the designation is such that each alpha graph has one and only one standard name. we then show how to transform standard names into unique CPC wffs. If X is any alpha graph. then the CPC wff formed by applying these instructions to X will be called f(Y).

At this point we will note that in our work with alpha we will set out and use two different formulations of the CPC rather than just one. The first of these systems is one which has conjunction and negation as primitive operators; this formulation is called P_r (the "r" is for Rosser). The other system uses implication as a primitive operator and has a primitive constant false proposition; this formulation is called P_w (the "w" is for Wajsberg). P_r and P_w are both complete CPC's, and as such are "equivalent." The reason we use two systems rather than just one is one of convenience. P_r is a convenient system into which to translate alpha graphs in one-one fashion; for a given alpha graph X the formula f(X) will be a wff of P_r. But P_w is a convenient system from which to translate wffs into alpha graphs in one-one fashion, as we shall see.

We have mentioned that we shall describe a function f which "translates" alpha graphs into wffs of the system P_r. We shall also describe a one-one function, or set of instructions, which will enable us to translate any wff of the system P_w into a unique alpha graph; this function we shall call "g." Where A is any wff of P_w, the unique graph formed by applying this set of instructions to A will be called g(A).

We shall provide a precise definition of what it means to be a logic, and we shall show how alpha "fits" this definition; that is, we shall show that alpha is a logic. In the process of doing this, we shall sat down precise formulations of the alpha rules of transformation which -- as we have mentioned -- are the rules of inference of the logic alpha.

Certain of the alpha graphs will be theorems of the logic alpha. Through a series of lemmas we shall establish that:

The graph X is a theorem of alpha iff the wff f(X) is a CPC theorem.

We shall also establish that:

The wff A is a CPC theorem iff the graph g(A) is a theorem of alpha.

We shall thus have established that the set of theorems of alpha maps one-one into the set of theorems of the CPC, and vice-versa. This means that given the natures of the functions f and g, alpha itself may be considered a complete classical CPC.

1.1 The Set of Alpha Graphs

Consider now another sign of the metalanguage. Let S(X) be "the result of enclosing the graph X by the ordinary alpha cut," which as we learned in the Introduction is a "self-returning linear separation" scribed upon the surface upon which we are working. Please note that if two "self returning linear separations" intersect each other, neither qualifies as a "cut," The cut itself is not a graph, but it plus the graph it encloses is a graph; that is, the scribing of a cut around a graph is a "graph-forming operation." Note that in practice a cut cannot be scribed without forming a graph, for it will always enclose at least b, the null-graph.

If a graph X Is enclosed by a cut, and another graph Y lies outside that same out, we shall say that X and Y are "separated"; otherwise they are "unseparated." This brings us to another sign of the metalanguage. Where X₁, . . ., X_n are n alpha graphs, each of which is either of the form S(Y) or is a member (other than b) of the set M_a, then J(X₁, . . ., X_n) is "the result of scribing the n graphs X₁, . . ., X_n unseparated on SA." The operation of scribing graphs unseparated on SA is then also a "graph-forming" operation.

We may summarize the above by listing the following rules; these rules may be considered the rules characterizing the set of alpha graphs:

From what has gone before„ we should already have a good idea of how to go about naming an alpha graph, as we have actually been using names of alpha graphs in our development. But we shall list some explicit rules similar to the above which will tell us formally how graphs are named.

Now note that since the set of alpha graphs is characterizable by the rules 1.1i-1.1iii it is a recursive set. Since it is recursive, it may be ordered (every recursive set is recursively enumerable in increasing order without repetitions) in such a manner that alpha graphs X and Y are associated with the same natural number iff X and Y are identical, that is, are able to be "generated" by exactly the same applications of rules 1.1i-1.1iii. We could, if we wished, describe means for such an ordering. Such a description would, however, be long, tedious, and irrelevant. The important thing is to know that the set may be so ordered; the exact "how" of the ordering does not make too much difference. Let us then select some ordering of the alpha graphs such that each alpha graph is associated with a unique natural number, and vice-versa. If, then, the names of the a alpha graphs X₁, . . ., X_n are written in a sequence, we shall see that that sequence is "properly ordered" iff it is ordered according to our selected unique ordering of alpha graphs. Of course, for any n such graphs there is one and only me "proper ordering."

We shall now define what we shall call the "standard name" of an alpha graph:

It should be evident that each alpha graph has one and only one standard name,

A question worth noting at. this point is that of the cardinality of the get of alpha graphs. Although we have asserted that this set is recursive, and so at most denumerably infinite, the graphical nature of the system may well conjure up ghosts of the power of the continuum to haunt us. Lot us simply remark here that our study involves only graphs containing a finite number of signs -- an assumption well-grounded in the study, say, of the ordinary logical systems, which deal only in finitely long words or sentences. Since this is the case, It is impossible that the number of alpha graphs be larger than a denumerable infinity. We may seem in this to be somewhat less liberal than Peirce himself, who seems at one point to indicate that graphs containing infinitely many signs are permitted (4.494). We must comment, however, that there are marked differences between the presentation of a system permitting wffs of finite length only, and that of one permitting infinitely long wffs. What Peirce says in 4.494 is certainly a rather casual remark, the full implications of which did not occur to Peirce when he made it -- and hardly could have, since the study of systems containing infinitely long sentences is of rather recent vintage. Indeed, so far as I have been able to determine, ho does not mention the matter again in the writings on the graphs included in the Collected Papers. We shall thus stick by our assumption that an alpha graph may be of finite length only.

1.2 The Alpha Graphs and the WFFS of the Classical Propositional Calculus

	1.2i	pi is wf, i ³ 0.
	1.2ii	AB is wf where both A and B are wf.
	1.2iii	~(A) is wf where A is wf.

Definitions will be as usual in the CPC, with a definition considered as providing a notational abbreviation for a formula in primitive notation; where there is no danger of confusion, we shall employ the staple letters 'p', 'q', 'r', 's', . . . as propositional variables in place of the primitive p₁, p₂, p₃, . . .. As with all definitions, this is to be understood to be a space and time saving abbreviation. The variable p₀ will have a special use in this system, in the following definition:

As rules of inference, P_r shall have substitution for variables and detachment; the axioms shall be Rosser's set:

The primitive signs of P_w are, propositional variables, a sign 'Æ', called the "constant false proposition," and a sign 'C', called the "sign of implication." The rules of formation are:

	1.2iv	pi is wf, i ³ 0.
	1.2v	Æ is wf.
	1.2vi	Cjy is wf where both j and y are wf.

Again, standard definitional abbreviations will be used, including the use of p, q, . . . as notational shorthand for p₁, p₂, p₃, . . .: the rules of inference are substitution and detachment, and the axioms are:

		CCpqCCqrCpr
		CpCqp
		CCCpqpp
		CÆp

 we are now prepared to note down a means of moving from the alpha graphs to the wffs of the CPC and vice-versa, we define a recursive word function f:

D1:

The function f takes the set of alpha graphs an its domain, and finds its range in the set (Pr). Given any alpha graph X, write the standard name of X. Wherever in that standard name the "subname" J(Y1, . . ., Yn) occurs, for all such "subnames" involving 'J', delete the 'J(' and the ')'s leaving Just the sequence Y1, . . ., Yn. Wherever 'S' occurs, replace it with the sign '~'. Wherever the simple 'b' occurs, replace it by '1', that is, by ~(p0~(p0)). Wherever 'b' occurs followed by i primes, i ³ 1, replace that occurrence of 'b' and the primes following it by pi, This completes the instruction for f; the result of the application of this instruction to an alpha graph X will be called f(X), end is a wff of Pr.

This last definition tells us how to transform an alpha graph into a wff of the CPC. As we remarked earlier, there to one and only one "standard name" for each alpha graph. It is quite clear that given any standard name, the latter part of the instructions in Dl will yield one and only one wff of P_r, The function f as defined above, then, is a one-one function; f(X) will be the same formula as f(Y) iff X is the some graph as Y. The intuitively acceptable interpretations of the signs of the alpha graphs are preserved in the translation made possible by the function f; unseparated occurrence of graphs in an area is correlated by f to PC conjunction, and enclosure by a out is correlated to inclusion in the scope of a negation sign; the minimal graphs of alpha are correlated to the atomic formulas of P_r.

We now mow on to the definition of the function which will enable us to translate wffs of the CPC into alpha graphs, First of all, we shall consider a subset of the set of alpha graphs, which we shall call _a. Membership in _a is defined as follows:

	1.2vii	All members of the set Ma are members of a with the exception of b.
	1.2viii	S(b) is a member of a.
	1.2ix	If X and Y are both members of a, than S(J(XS(Y))) In a member of a.

Let us introduce the following definitton:

D2:

G(XY) =df S(J(XS(Y)))

 We might now restate the last rule thus: If X and Y both are members of _a , then G(XY) is a member of _a.

We may now move directly to a statement of the function g:

D3:

The function g takes (Pw) as its domain, and a (a subset of the set of alpha graphs) as its range. Given any wff of Pw, replace Cjy wherever it occurs by G(jy); wherever the variable pi occurs, for each i and each such variable occurrence, replace it by 'b' followed by a string of i primes; wherever 'Æ' (the constant false proposition) occurs, replace it by 'S(b)'. The result is the name of a graph. Where the wff with which we began was j, the graph named by the result of applying this instruction is g(j); draw the graph thus named. The instruction is complete.

It is clear that the function g is one-one and onto _a.

1.3 Alpha as a Logic

Before entering into a detailed study of alpha as a logic, it will be well to may a few words about logics in general. The definitions we employ are in general adopted from Martin Davis; we retain, however, our numbering, First of all, let us say what we mean by "logic."(n1)

D4:

By a logic we understand a recursive set A of words, called the axioms of , together with a finite set of recursive word predicates, none of which is singulary, called the rules of inference of .

It should be clear that a "recursive word predicate" is to a number-theoretic predicate as a recursive word function is to a (partial recursive) number-theoretic function.

	D5:	When R(Y, X1, . . . , Xn) is a rule of inference of , we shall sometimes say that Y is a consequence of X1, . . . , Xn in by R.
	D6:	A finite sequence of words X1, X2, . . ., Xn is called a proof in a logic if, for each i, 1 £ i £ n, either
		(1) Xi e A, or (2) There exist  j1, j2, . . ., jk such that Xi is a consequence of X j1, Xj2, . . ., Xjk is by one of the rules of inference of. .
	D7:	We say that W is a theorem of or that W is provable in and we write
		W
		if there is a proof in whose final step is W. This proof is then called a proof of W in .

1.31 "Theorem Generation" in Alpha

It will be our desire to show to quickly as possible that alpha is a logic. But before we state a metatheorem to this effect, lot us examine alpha in the light of the requirements of Davis's definition. The first such requirement is for a recursive set of axioms; the usual criterion for determining what -- in a given system -- is an axiom is the word of the author of the system. Peirce was not so kind as to say explicitly, "Such-and-such a graph is an axiom of alpha," so we must look closely at the matter. An axiom is a theorem or "assertable word" of the system which need not be derived or proven within the system. Examining Peirce's presentation of alpha, we find one end only one graph which qualifies as such in what may be called the "unspecialized version" of alpha (that is, alpha with no "extralogical" premises). That graph is the blank sheet of assertion itself. We will recall that Peirce explicitly called SA a graph, and that we have notation in our metalanguage to speak about it. Any blank area on SA (and this includes the completely blank SA itself) is the null-graph, or b. Since SA is a presupposition of any graph whatsoever, we shall declare that the axiom set of alpha contains one and only one member, b.

It may seem curious to employ a null "something-or-other" as an axiom, since we very commonly think of the null-set as correlated in some way with the truth-value "false"; but let us recall that the "constant false proposition" employed in many systems of PC is often explicated as the proposition which says that "everything is true." This explication is exemplified in systems which have quantifiers ranging over propositional variables; in these systems the proposition '~(p)p' is a theorem. In the sense of "null" which is contrasted to the above sense of "universal," then, it is quite reasonable to take the "null-graph" as assertable.

PR00F: By D1, f (b) is '1', which is '~(p₀.• ~p₀)', which is immediately recognized as a theorem of P_r.

The above lemma establishes that the axiom of alpha is correlated by f to a theorem of P_r. We now turn to the rules of inference in alpha, proving in the process two lemmas that are of some independent interest in the study of the CPC itself. We shall say that a given occurrence of wf subformula, B, of P_r is in "antecedental position," or "A-pos," in a P_r wff Q, and we shall write Q^A(B) for the whole formula iff the occurrence of the subformula B is within the scope of an odd number of negation signs in Q at the one occurrence of B in Q which is in question. We shall say that that occurrence of B is in "consequential posit ion," or "C-pos," and shall write Q^C(B) for the whole formula otherwise, that is, when B is in the scope of an even number of, or of no negation signs in Q.

LEMMA 1.03	Where r QA(B) and r D É B, then also r QA(D)
LEMMA 1.04	Where r QC(B) and r B É D, then also r QC(D)

PROOF: These two lemmas shall be proven together. It is understood, of course, that in each lemma the D is to be considered as replacing the B.

We know that it is possible to reduce any wff of P_r to an equivalent conjunctive normal form, Reduce the formula Q(B) to such a form, making Ono exception to the usual procedure; that will be to treat B in the one occurrence with which we concerned as if it were a propositional variable. All occurrences of propositional variables outside of that occurrence of B are to be treated as usual in the reduction, but the occurrence of B with which we are concerned will never be "broken up" in the reduction The form we thus arrive at we may call the "quasi-normal-conjunctive" form of Q(B), or "Cnj(Q(B))." The PC laws needed for the transformation are (in parenthesis-free form):

1.	EApKqrKApqApr
2.	ENANpNqKpq
3.	ENKpqANpNq
4.	EpNNp

These, together with the definitions of connectives In P_r, substitution for variables, and the substitutivity of the biconditional are all that is needed to perform the required transformation, An examination of the above laws will show that the property in a subformula occurrence in a wff A of being in A-pos or in C-pos in A is hereditary through applications to A of substitution instances of the above laws by substitutivity of the biconditional. But such applications are all that is needed, basically, to transform Q(B) to Cnj(Q(B)).

But this "hereditary nature" of A-pos and C-pos through the relevant transformations means that (with the aid of the law 'EpKpp') any Cnj(Q^A(B)) may be written in the general form:

5.	~B Ú F1 × ~B Ú F2 × . . . × ~B Ú Fn × G1 × G1 × . . . × Gm

and any Cnj(Q^C(B)) may be written in the general form:

6.	G1 × G1 × . . . × Gm × F1 Ú B × F2 Ú B × . . . × Fn Ú B

The n indicated occurrences of B in each of 5 end 6 above are the only occurrences of B in these formulas "derived from" the occurrence of B in question in Q^A(B) and Q^C(B) respectively; note that in 5 all such occurrences of B are in A-pos, and in 6 all such occurrences are in C-pos, Now, by laws 1-4 above, plus 'EpKpp', 5 may be transferred to a formula of form:

7.

~B Ú S

which, of course, is equivalent to

7¢.

B É S

The formula 7¢ is, of course, equivalent to the original Q^A(B), and the one occurrence of B as the antecedent of 7¢ is the only one in 7¢ which may be considered "ancestrally derived from" the occurrence of B in question in Q^A(B). Similarly, 6 may be placed in the form

8.	R Ú ×S × B

which is equivalent to a form

8¢.	T É ×S × B

The formula 8¢ is equivalent to Q^C(B), and the one occurrence of B in the consequent of 8¢ is the only one in 8¢ which is "ancestrally derived from" the occurrence of B in question in Q^C(B). The proof of the lemmas follows immediately. if r D É B, then 7¢ is immediately transformable into D É B; we can see immediately that this last formula is equivalent to Q^A(D). Also, if r D É B, then 7¢ is immediately transformable into T É ×S × D; this formula is clearly equivalent to Q^C(D).

These two lemmas are of some interest in the study of the CPC an they provide us with a kind of analysis of the rule of substitutivity of the biconditional. Whereas the latter rule gives us a means for replacing a subformula B by a subformula D when B É D × D É B , the lemmas 1.03 and 1.04 specify conditions when the replacement may be made when simply D É B or B É D respectively. These lemmas could not be used, of course, as they have been proven here, as parts of a proof of the rule of substitutivity of the biconditional for that rule has been used in their proof. it is not difficult to visualize proofs of these lemmas, however, which would not make use of this rule.

We may now put these lemmas to use In the proof of the following:

PROOF: If R_ins(Y, X) is true, then there is a subgraph Z oddly enclosed in Y which does not stand at the corresponding position in X; X and Y are otherwise identical. By D1 (the definition of f), then, f(X) and f(Y) are identical except that f(Y) contains the subformula which is f(Z) In an A-pos where f(Y) does not contain it. In an A-pos then, f'(Y) contains the subformula A× f(Z) × B, where one but not both of A and B may be null; In the corresponding position, f(X) contains merely A× B But it is trivially the case that r A × f(Z)× B× É ×A × B. But then, if f(X) is a theorem of P_r, by lemma 1.03 f(Y) must also be a theorem, and lemma 1.05 holds. The proof of lemma 1.06 is similar, employing, in its course, lemma 1.04.

PROOF: It will be recalled that R_itr(Y, X) Is true iff Y is identical to X except for containing one more occurrence of a subgraph Z than does X, with Y having at least one occurrence of Z; the extra occurrence of Z in Y is to be located in an area enclosed by at least all the cuts which enclose another occurrence of Z In Y, which last-mentioned occurrence corresponds to an occurrence of Z In X. What we want at this point is a simple means of characterizing in P_r the differences between the wffs f(Y) and f(Y). A good way of doing: this will be to employ the notion of the "functor variable"(n1). We shall not, however, employ functor variables as signs of the object language, as Prior does in the passage cited above. The sign 'd' will be considered a sign of the metalanguage; dp will be a schema which may represent any truth-function of p.

We may now characterize the difference between f(X) and f(Y). The wffs f(X) and f(Y) are identical except that where f(X) contains the subformula

f(Z) × d (A × B),

f(Y) contains the subformula

f(Z) × d (A × f(Z) × B).

Note that one but not both of the wf subformulas A and B may be null. But it is easily proven (and intuitively acceptable) that

This means that lemma 1.07 holds, and since R_dit is the exact converse of R_itr, lemma 1.08 also holds.

We may now move to the two final lemmas of this sequence:

PROOF: R_bcl(Y, X) is true iff Y is like X except for containing a subgraph S(S(Z)) where X contains simply Z. But then f(Y) is like f(Y) except for containing the subformula ~~f(Z) where f(X) contains just f(Z). But

r p º ~~p

so by substitutivity of the biconditional

r f(X) º f(Y).

Lemma 1.09 then holds, and since R_nbc is the exact converse of R_bcl, lemma 1.10 holds as well.

We may now state the metatheorem to which these lemmas have been leading:

PROOF: Immediate from the preceding lemmas. For by lemma 1.02, f of the axiom of alpha is a theorem of P_r, and the lemmas 1.03-1.10 show that for each of the rules of inference of alpha there is a parallel derived rule of inference in P_r. If then there is a proof in alpha for a graph X, there is also a proof in P_r for f(X), and the metatheorem holds.

PROOF: Suppose alpha to be inconsistent. Then any well-formed graphs would be derivable by its rules of inference; specifically, the graph S(b) would be so derivable. But by *1.11, f(S(b)) would be a theorem of P_r. Now f(S(b)) is equivalent to 'p₀ × ~p₀', which is obviously not a theorem of P_r. Neither, then, is S(b) a theorem of alpha, and alpha is consistent.

The next step we must undertake is to prove the converse of the metatheorem *1.11.Consider a function, which we shall call h. This function is to be many-one, and is to map the set (P_w) onto the set of alpha graphs. For any P_r wff A form h(A) as follows: wherever in formula A subformula ~(B) occurs, replace it by

and replace each P_r propositional variable by an appropriate minimal graph of alpha. The P_r variable 'p₀', we will recall, has a special use in the wff '~(p₀ × ~p₀)', which is associated with the null-graph of alpha. We may remark here that if any P_r wff A contains p₀ outside the context '~(p₀ × ~p₀)', then A is clearly not in the range of the function f. In such cases, simply substitute for p₀ wherever it occurs in A a propositional variable entirely new to A. Now if '~(p₀ × ~p₀)' occurs in a formula as it has been transformed to this point, simply erase it to form the null graph. This completes the instruction; the result of the application of this instruction to a wff A is the graph h(A). Note that where there were conjunctions of subformulas in A, there are unseparated occurrences of subgraphs in h(A), and where there were negation signs, there are cuts.

It should be evident that h is, as we claimed earlier, many-one and onto alpha. It is many-one (and not one-one) since the formulas 'p₁ × p₂' and 'p₂ × p₁', for example, would both translate through h into the same graph. It is onto alpha, since, quite clearly, from the definition of f,

h(f(X)) = X,

and for every alpha graph X there is a corresponding wff f(X).

We shall now establish the following lemma:

PROOF: We shall prove this lemma be deriving, as theorems of alpha, h of each of the three axioms of P_r which we listed earlier in this chapter.

Axiom, Rbcl		(1)
(1), Rins		(2)
(2), Ritr		(3)

Note that (3) is h of the axiom 'p × q É × p'.

(1), Rins		(4)
(4), Ritr		(5)
(5), Ritr		(6)

Note that (6) is h of the axiom 'p É × p × p'.

(1), Rins		(7)
(7), Ritr		(8)
(8), Ritr		(9)

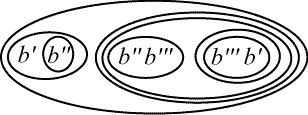

(9), Rbcl		(10)

Note that (10) is h of the axiom 'p É q .É. ~(q r) É ~(r p)'; this concludes the proof.

We shall now prove lemmas regarding "derived rules of inference" in alpha. Note that we shall make these lemmas do double duty, stating them both for h and the system P_r and g and the system P_w. This will save us the trouble of proving a parallel set of lemmas in the next section of this chapter.

LEMMA 1.14

Where d p, as a truth-function of p, is a theorem of either Pr or Pw, and dA is the result of substituting the wff A for every occurrence of p in  d p, then if a h(d p) -- or g(d p), depending upon the system of which d p is a theorem -- then also a h(d A) -- or g(d A), as the case may be. This lemma is stated only for the cases in which d p does not contain '~(p0~(p0))'.

PROOF: This lemma is stated only for the "unspecialized" alpha system, that is, the system which has b as its sole axiom. If there is a proof in alpha for h(d p) -- or g(d p) -- I think it can be seen without elaborate argument that there will also be a proof for h(d A) -- or g(d A). The minimal graph corresponding to p in h(d p) -- or g(d p) --had originally to be introduced into the graph by an application of R_ins, But a graph corresponding to A could just as easily. have been introduced at that point, and then treated in subsequent transformations just as the minimal graph corresponding to p was treated. If, then, h(d p) -- or g(d p) -- is an alpha theorem, then h(d A) -- or g(d A) -- must also be an alpha theorem. This lemma states, in effect, the existence of a "derived rule of substitution" for minimal graphs in alpha; this derived rule may be called R_sbs, this being a binary recursive word predicate.

LEMMA 1.15

h(A É B) and h(A) -- or g(A É B) and g(A), depending on whether A and B are wffs of Pr or Pw --are theorems of alpha, then h(B) -- or g(B) -- is also a theorem of alpha.

PROOF: Let h(A) -- or g(A) --be the graph X; let h(B) -- or g(B) -- be the graph Y. The graph h(A É B) -- or g(A É B) -- is:

This is clear from the definitions of these functions. Now, by hypothesis, the following graph is a theorem of alpha:

By one application of R_dit, this becomes:

And by one application of R_ers, this becomes:

And finally, with an application of R_nbc, we get:

Y

But Y is h(B)--or g(B), as the case may be--and so the lemma holds. There is just one case in which there may be some question as to the truth of this lemma; this is with regard to the P_r theorem. For h(~(p₀ . ~p₀)) is b, the null graph, and not a graph of form G(X,Y). But note that here the second hypothesis of the lemma -- that h(A) be a theorem of alpha -- can never be realized because of the consistency of alpha and the fact that h(A) will here be an alpha minimal graph other than b. Since that hypothesis can never be realized, the antecedent of the lemma is false in this special case, and so the lemma is true.

This lemma may be considered to assert the existence in alpha of a derived rule of detachment, which may be called R_dtm -- a ternary recursive word predicate.

Now we may apply our lemmas thus

*1.16

If A is a theorem of Pr, then h(A) is a theorem of alpha.

PROOF: We know from lemma 1.13 that when A is an axiom of P_r, h(A) is a theorem of alpha. We also know from lemmas 1.14 and 1.15 that analogs of P_r' s rules of inference exist as derived rules of inference in alpha.

Let us now divide the theorems of P_r into two sets

1.		Those which do not contain the subformula '~(p0 . ~p0)' , and
2.		Those which do contain occurrences of this subformula.

Clearly, if there is a proof in P_r for a wff A, and A belongs to the first of these sets, then there is a proof for h(A) in alpha, by lemmas 1.13, 1.14, and 1.15, and the definition of h.

Now consider a wff A for which there is a proof in P_r, and which contains one or more occurrences of '~(p₀~p₀)'. But if there is a proof in Pr for A, then there is a proof for a wff A', which is exactly like A except for containing the subformula '~(p_i~p_i)' --with p_i entirely new to the formula -- wherever A contains '~(p₀~p₀)'. This we know because of the rule of substitutivity of the biconditional. A' is then a theorem, and belongs to the first of the sets of theorems mentioned above. By our remarks in the preceding paragraph, then, h(A') is a theorem of alpha.

The graph h(A') contains at certain places the subgraph

(with the I representing a string of i primes)

corresponding to the subformula '~(p_i~p_i)' in A'. But for any graph X,

is clearly a theorem of alpha. The subgraphs

may then be deiterated from wherever they stand in h(A'), leaving blanks at those places. But by our definition of h, the result of such deiterations from the graph h(A') is pre cisely the graph h(A). In the case where A contains occurrences of '~(p₀~p₀)', then, and is a theorem of P_r, h(A) will be a theorem of alpha. Thus, in every case that A is a theorem of P_r, h(A) is a theorem of alpha.

*1.17

If f(X) is a theorem of Pr, then X is a theorem of alpha.

PROOF: Suppose that f(X) is a theorem of P_r. Then, by *1.16, h(f(X)) is a theorem of alpha. But by the definitions of f and h, we know that h(f(X)) and X are the same graph; thus X is a theorem of alpha, and the metatheorem holds.

1.33 The System P_w in the Logic Alpha

We now move to a consideration of how a set of PC theorems maps into the set of alpha theorems. At first glance this may seem a strange project to enter into at this point, for we have already indicated that the function h maps the set of theorems of P_r onto the set of alpha theorems (although we have not formally stated this, it is nonetheless fairly evidently the case). But h is not a one-one function, and we wish to show that the set of PC theorems maps one-one into the set of alpha theorems. Here we shall make use of the one-one function g and the subset _a of alpha graphs.

We shall now introduce a sign of the metalanguage similar to one we used in the proof of lemmas 1.07 and 1.08, the sign 'd'. This sign may be used along with the signs of alpha, and when it appears in a sign complex, that complex will be known as a "graph schema." The sign will be a Greek letter, usually 'd', followed by a pair of curly braces within which will be scribed a graph (possibly the null-graph, in which case nothing will appear between the braces).

This sign, with a graph scribed between its braces, may stand in place of any alpha graph, and its relation to the alpha system is just the same as that of the employed in the proof of lemmas 1.07 and 1.08 to the CPC. It represents, in other words, a "graph function" of the graph that appears between its braces.

We shall now engage in some graphical proofs:

LEMMA 1.18

Let d{X} Î a whenever X Î a. Then the graph at (5) below is a theorem of alpha and a member of a.

PROOF: The lemma is proven by the following graphical steps:

Axiom, Rbcl		(1)
(1), Rins		(2)
(2), Ritr		(3)
(3), Ritr, Rbcl		(4)
(4), Rbcl		(5)

The graph at (5) is the one we wished to prove. That any graph belonging to this schema is a member of a is a simple matter of inspection.

LEMMA 1.19

With assumption as above, the graph is a theorem and a member of a.

PROOF:

(1), Rins		(6)
(6), Ritr		(7)
(7), Ritr, Rbcl		(8)
(8), Rnbc		(9)

The graph at (9) is the one we wished to prove; again, determining that any graph belonging to this schema belongs to a.is a matter of inspection.

LEMMA 1.20

With assumption as above, the graph is a theorem and a member of a.

PROOF:

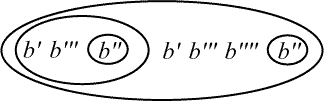

(1), Rins		(10)

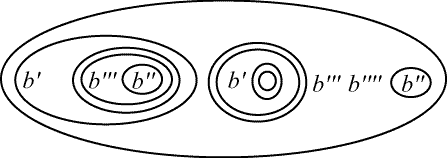

(10), Ritr		(11)

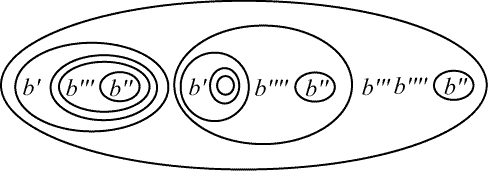

(11), Rbcl		(12)
(12), Ritr		(13)

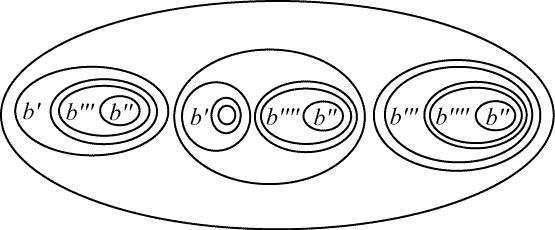

(13), Rbcl		(14)

Now with (14), applying (14) first to the graph of lemma 1.18, and the result of that to the graph of lemma 1.19 by the derived rules R_sbs and R_dtm (taking first the graph of 1.18 and then that of 1.19 as "antecedent" in (14)), we get

(15)

membership in a by inspection.

Let us now examine what we have. By the translation function g, the graph-theorem-schema of lemma 1.20 is correlated to the P_w theorem schema

Cd1CdÆdp.

Here '1' is defined as 'CÆÆ'. This will be recognized as being of the same form as the single axiom of Łukasiewicz' Classical PC with functor variables of 1951.(n1) Although we are not using functor variables as primitive symbols, it should be evident that the formulas belonging to the above schema, when joined to the rules of inference of detachment and substitution for variables, form a sufficient basis for the complete CPC; the axioms of P_w are derivable in  a system containing the above schema. The presence of the schema of lemma 1.20 in alpha emphasizes the extensional nature of alpha, and also illustrates the power of the rules of transformation of alpha. We may now state the metatheorem to which these lemmas have been leading:

*1.21

A wff A is a theorem of Pw iff g(A) is a theorem of alpha.

PROOF: Lemmas 1.14. and 1.15, along with lemma 1.20, show us that whenever there is a proof for A in P_w, there is a proof for g(A) in alpha. Conversely, suppose that g(A) is a theorem of alpha, but A is not a theorem of P_r. P_w is strongly complete, and by the first part of this metatheorem, every theorem of P_w has a correlate theorem in a. (the range -- in alpha -- of the function g). If in addition to these theorems we have g(A) as a theorem derivable by the alpha rules of transformation, while A is a non-theorem of P_w, it is easy to see that in the presence of the other theorems of alpha which are members of a.and the derived rules of substitution and detachment in alpha that any member of a.would then be provable as an alpha theorem. But S(b) is a member of a, and would in this case be an alpha theorem; this, however, would render alpha inconsistent. But, by corollary 1.12, alpha is consistent. Therefore, it must be the case that if g(A) is a theorem of alpha, A is a theorem of P_r, and the metatheorem holds in both directions.

We shall now state another definition of Martin Davis(n1)

D8:

Let and ¢ be logics. Then we say that is translatable into ¢ if there exists a recursive word function k(X) such that X iff ¢ k(X), and moreover; if, whenever X = Y, we also have k(X) = k(Y) (That is, if k is one-one).

The following metatheorem applies this notion to alpha:

*1.22

Any complete CPC is translatable into alpha and vice-versa.

PROOF: Immediate from D8, *1.11, *1.17, and *1.21, and the definitions of the functions f and g.

Actually, considering the natures of the functions f and g, we are safe in saying that alpha is itself a complete classical propositional calculus. We may add the following concluding metatheorem:

*1.23

Alpha is complete in the strongest sense possible for a system lacking a primitive rule of direct substitution for variables.

:PROOF: Immediate from *1.17, which asserts that if f(X) is a theorem of P_r , X is a theorem of alpha.
